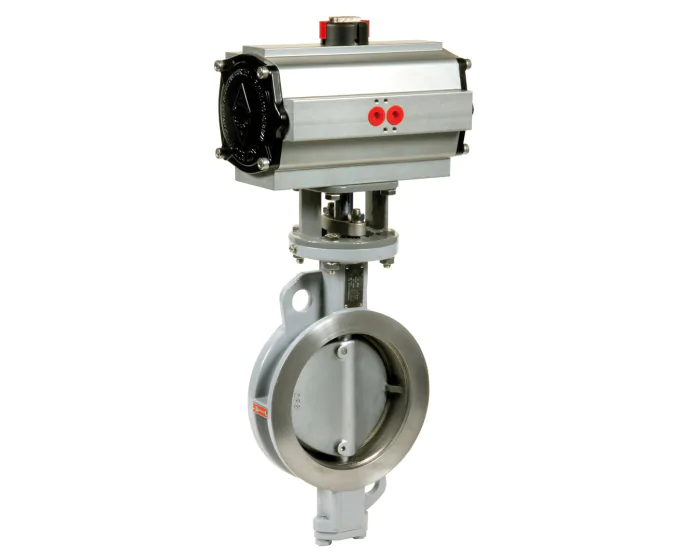

The 1110 series carbon steel double offset butterfly valve, equipped with either a spring return or double-acting ACTREG pneumatic actuator, features an A216WCB body and CF8M disc. It is designed for mounting between PN25 flanges.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 20 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 630 (17-4 PH) |
| Adjustable limit screws | Yes |
| Lockable | Yes |
| ATEX compatible | Yes |
| DN | DN50 - 2'' |
| Face to Face (mm) | 43.0 |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Position | Normally closed |
| PS (bar) | 25 |
| Connections | Flanged PN25 |
| Seats | PTFE-Graphite |
| Surface temperature | TX |
| TS max (°C) | 210 |
| TS min (°C) | -25 |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| ATEX zone | 1.2.21.22 |
| Warranty period | 2 years |
| CE | Risk category II |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN25 Carbon steel A216 WCB (1.0619) Concentric DN50 - 2'' Double acting | 260890015101 | S1001609 |
€477.36
(excl. btw)
|
add to cart |
| Flanged PN25 Carbon steel A216 WCB (1.0619) Concentric DN50 - 2'' Spring return | 260890016102 | S1001610 |
€534.64
(excl. btw)
|
add to cart |
| Flanged PN25 Carbon steel A216 WCB (1.0619) Concentric DN65 - 2''1/2 Double acting | 260891015101 | S1001611 |
€477.36
(excl. btw)
|
add to cart |
| Flanged PN25 Carbon steel A216 WCB (1.0619) Concentric DN65 - 2''1/2 Spring return | 260891016102 | S1001612 |
€534.64
(excl. btw)
|
add to cart |
| Flanged PN25 Carbon steel A216 WCB (1.0619) Concentric DN80 - 3'' Spring return | 260892016103 | S1001613 |
€678.51
(excl. btw)
|
add to cart |
| Flanged PN25 Carbon steel A216 WCB (1.0619) Concentric DN100 - 4'' Double acting | 260893015102 | S1001614 |
€643.71
(excl. btw)
|
add to cart |
| Flanged PN25 Carbon steel A216 WCB (1.0619) Concentric DN100 - 4'' Spring return | 260893016104 | S1001615 |
€735.66
(excl. btw)
|
add to cart |
| Flanged PN25 Carbon steel A216 WCB (1.0619) Concentric DN125 - 5'' Double acting | 260894015104 | S1001616 |
€871.80
(excl. btw)
|
add to cart |
| Flanged PN25 Carbon steel A216 WCB (1.0619) Concentric DN125 - 5'' Spring return | 260894016105 | S1001617 |
€984.91
(excl. btw)
|
add to cart |
| Flanged PN25 Carbon steel A216 WCB (1.0619) Concentric DN150 - 6'' Double acting | 260895015105 | S1001618 |
€1,065.03
(excl. btw)
|
add to cart |
| Flanged PN25 Carbon steel A216 WCB (1.0619) Concentric DN150 - 6'' Spring return | 260895016106 | S1001619 |
€1,214.23
(excl. btw)
|
add to cart |
| Flanged PN25 Carbon steel A216 WCB (1.0619) Concentric DN200 - 8'' Double acting | 260896015105 | S1001620 |
€1,579.29
(excl. btw)
|
add to cart |
| Flanged PN25 Carbon steel A216 WCB (1.0619) Concentric DN200 - 8'' Spring return | 260896016106 | S1001621 |
€1,728.40
(excl. btw)
|
add to cart |
| Flanged PN25 Carbon steel A216 WCB (1.0619) Concentric Double acting DN250 - 10'' | 260897015106 | S1001622 |
€2,293.03
(excl. btw)
|
add to cart |
| Flanged PN25 Carbon steel A216 WCB (1.0619) Concentric Double acting DN300 - 12'' | 260898015106 | S1001623 |
€2,746.04
(excl. btw)
|
add to cart |
